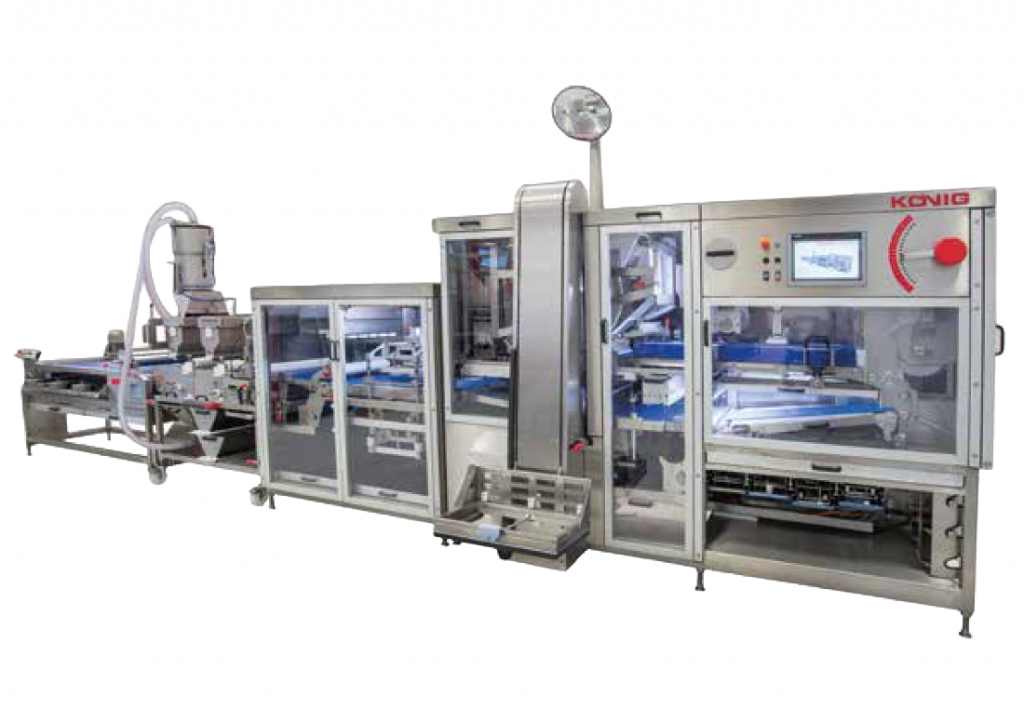

Certo Pan M

Features

An entirely new system of dough sheet production is at the basis of the Certo Pan M, which guarantees maximized weight accuracy without waste dough by using a rotation principle. In order to avoid discontinuities and thus irregularities in the dough, the added dough is rotated and cut and therefore formed to a continuous and endless dough sheet, from which dough pieces with high weight accuracy can be produced.

  • the line can process up to 600 kg dough per hour max.
  • hourly output rate of up to 7,500 pieces (rectangular rolls) and 6,000 pieces (rounded rolls) at 5-row operation
  • infeed of dough via an integrated box lifting unit
  • endless dough sheet production by the use of a rotating disc hopper and an oscillating cutting knife
  • exchangeable cutting rollers cut the dough sheet into the required number of rows
  • total width of the dough sheet is approx. 240 mm
  • even dough pieces with high weight accuracy
  • hinged doors and the swiveling disc hopper enable easy access and therefore optimized cleaning
  • intuitive operation with SPS control and touch panel with pictograms
  • the dough sheeting line in compact design is particularly suitable for artisanal bakeries with highest quality demands
  • integrated weighing unit allows the weighing of the dough sheet across the dough sheet and adjustment of the cutting interval
